VHSN-J15

Kitchen bar with integrated wine storage
VHSN-J15 split system wine cellar cooling unit with inverter outdoor condenser

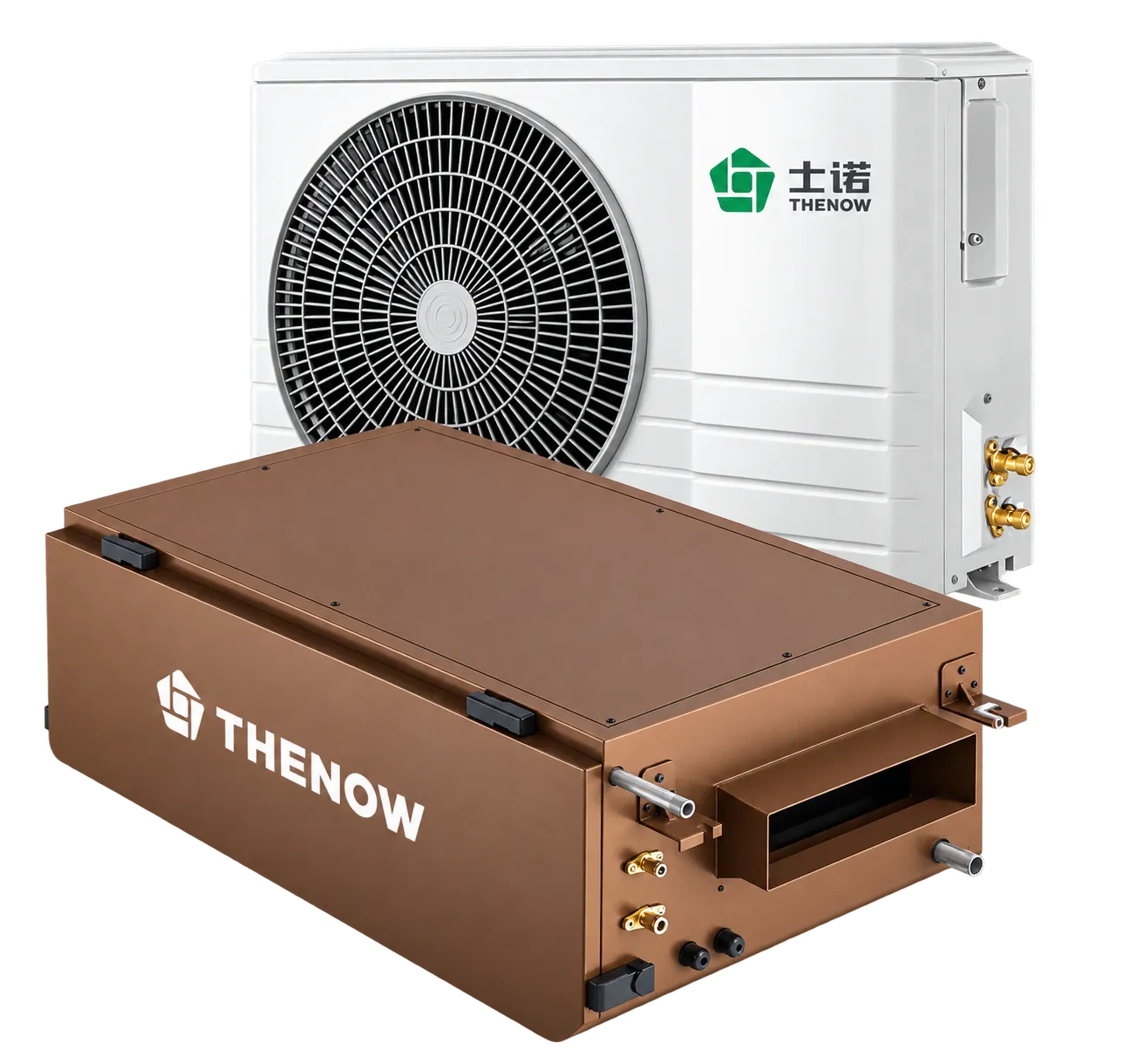

VHSN-J15 split system: indoor evaporator and inverter outdoor condensing unit

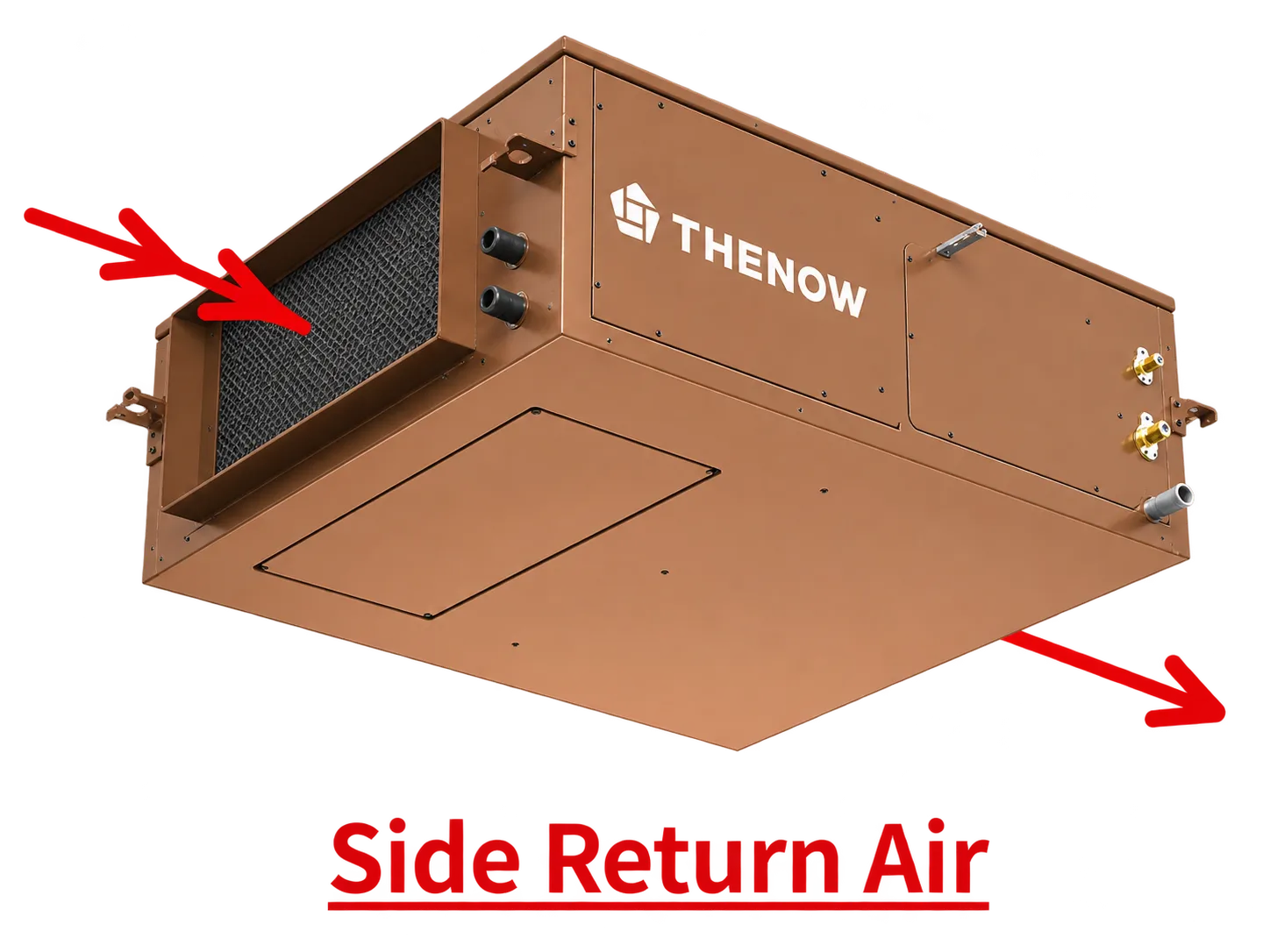

VHSN-J15 evaporator configured for side return air

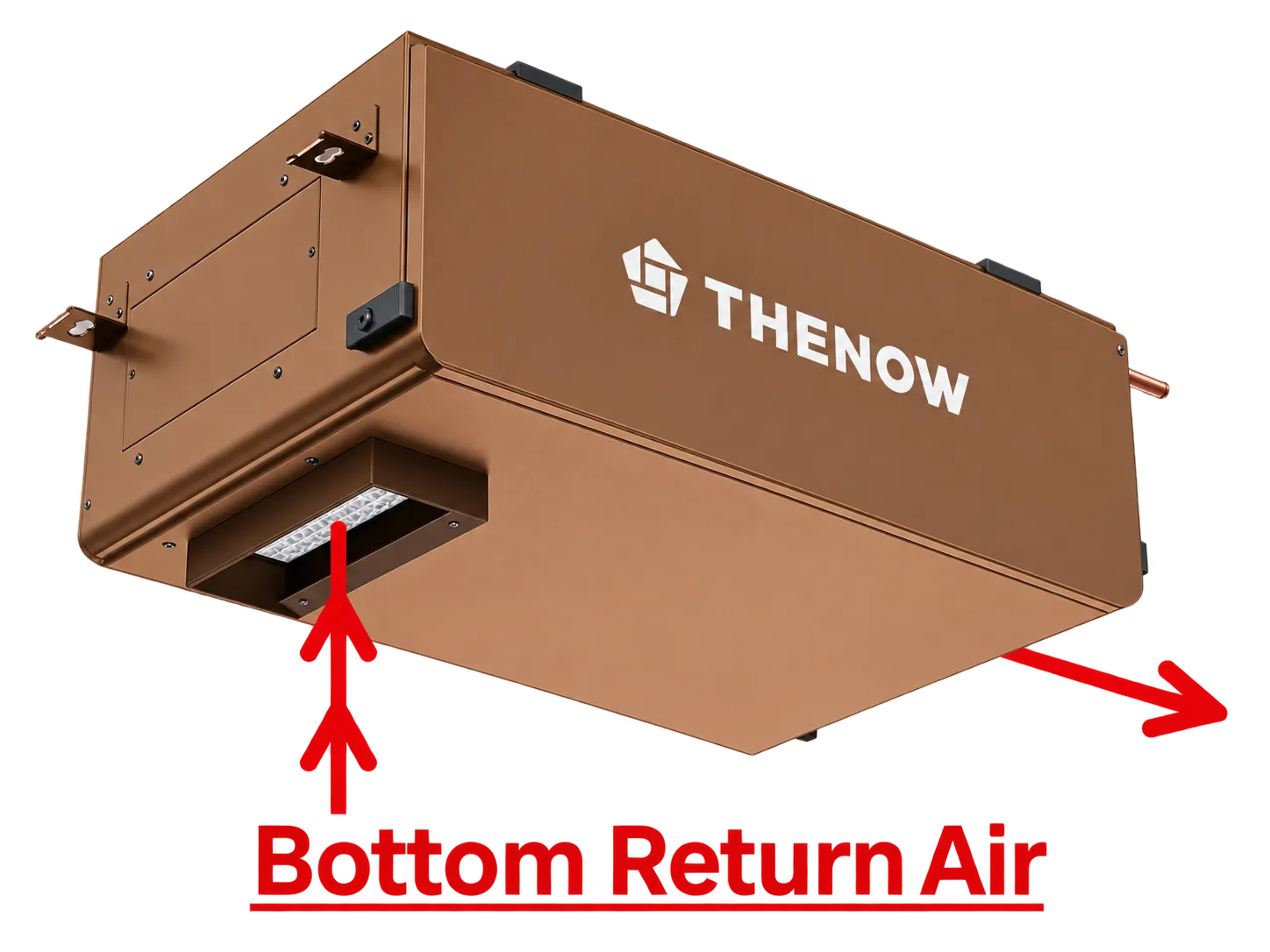

VHSN-J15 evaporator configured for bottom return air

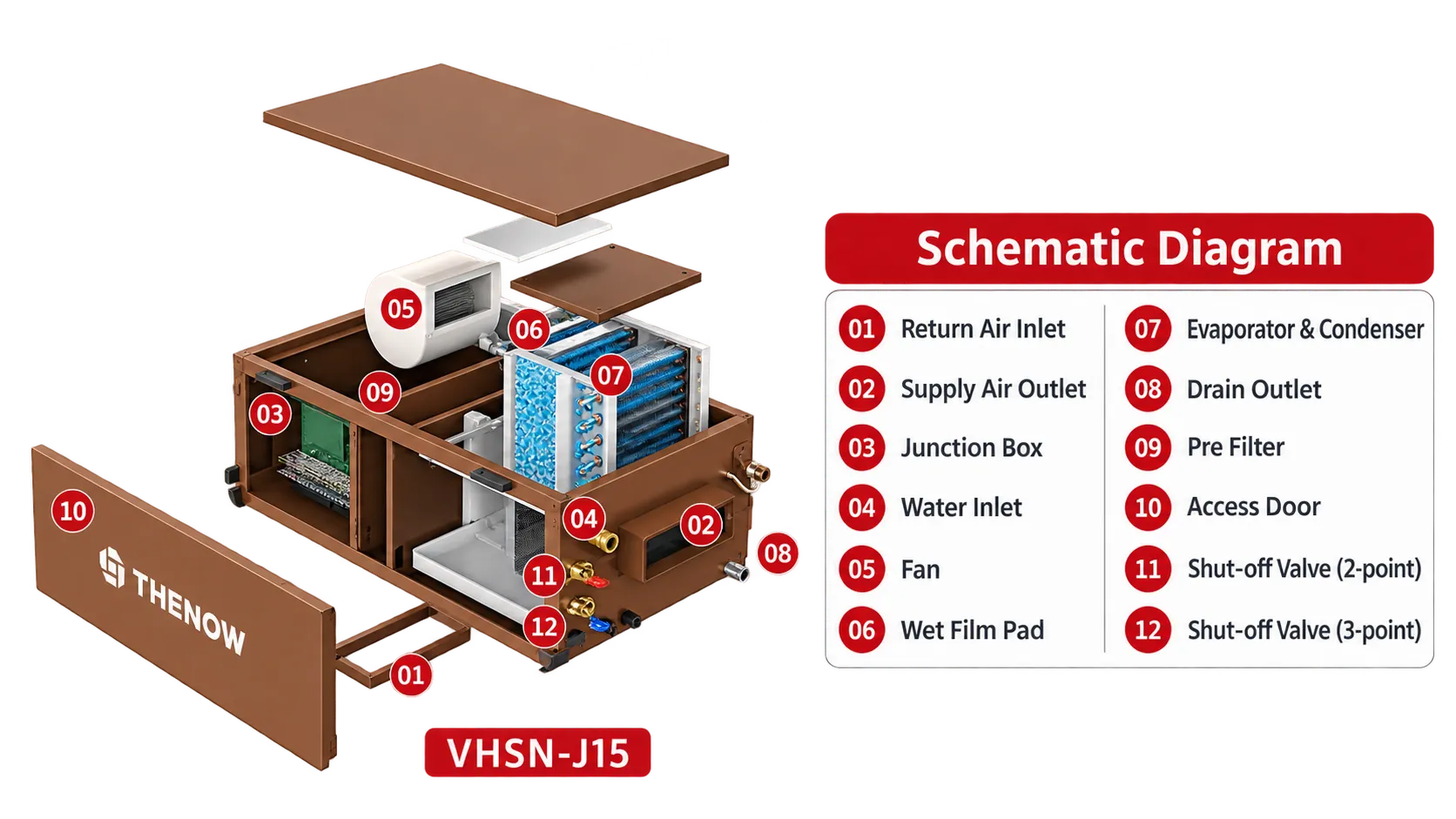

Exploded schematic of the VHSN-J15 evaporator with a numbered parts list naming each component
No items found.
View details
View details

Wine Cellar Cooling Units Split System / VHSN-J15 Features:

  • Auto cooling and heating mode, keep wine cellar under constant temperature.
  • The evaporator is nickel plated for corrosion protection
  • Adopt circulating water wet-film auto control humidification system,wet film is made of Swedish organic polymer material with sterilization and disinfection function.
  • Full touch control system, famous brand sensors, stable quality and performance.
  • Pull-out design wet film module, easy to replace
  • Control constant condensation temperature
  • Variable-speed airflow under automatic control to maintain the ideal environment for long-term wine storage
  • Can be ceiling mounted, rack mounted

‍

View details
View details
View details
MODELUNITVHSN-J15
Cellar Size (Up to)m³5–15
Horse PowerHP0.5
Power SupplyV/Hz220V/50Hz
Cooling Capacity AkW0.8
Cooling Capacity BkW1.9
Heating CapacitykW2.3
Air Flowm³/h300
Static PressurePa30
NoisedB(A)38
Refrigerant/R32
Controller/PC Full-touch smart control
Temperature°C10–18 (±2)
Humidity%RH50–70 (±5)
Total PowerkW0.73
HumidifierTypeWet-film
Indoor Unit SizeL×W×H (mm)881×473×314
Outdoor Unit SizeL×W×H (mm)758×336×500
Connection Tube (Liquid)mm6.35
Connection Tube (Gas)mm9.52
The specific parameters of Wine Cellar Cooling Units Split System / VHSN-J15. Cooling Capacity A tested at 12°C cellar / 35°C outdoor; Cooling Capacity B at 27°C cellar / 35°C outdoor.
