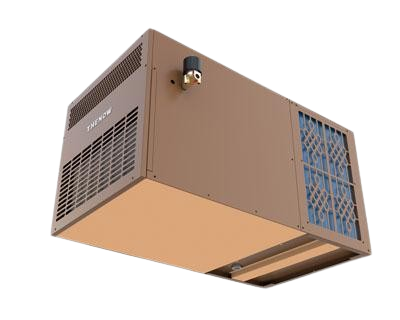

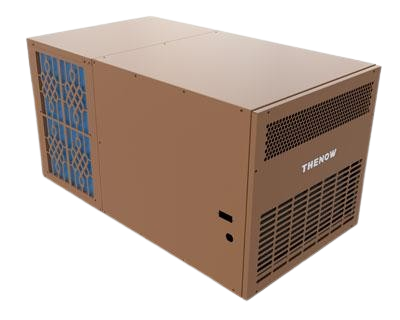

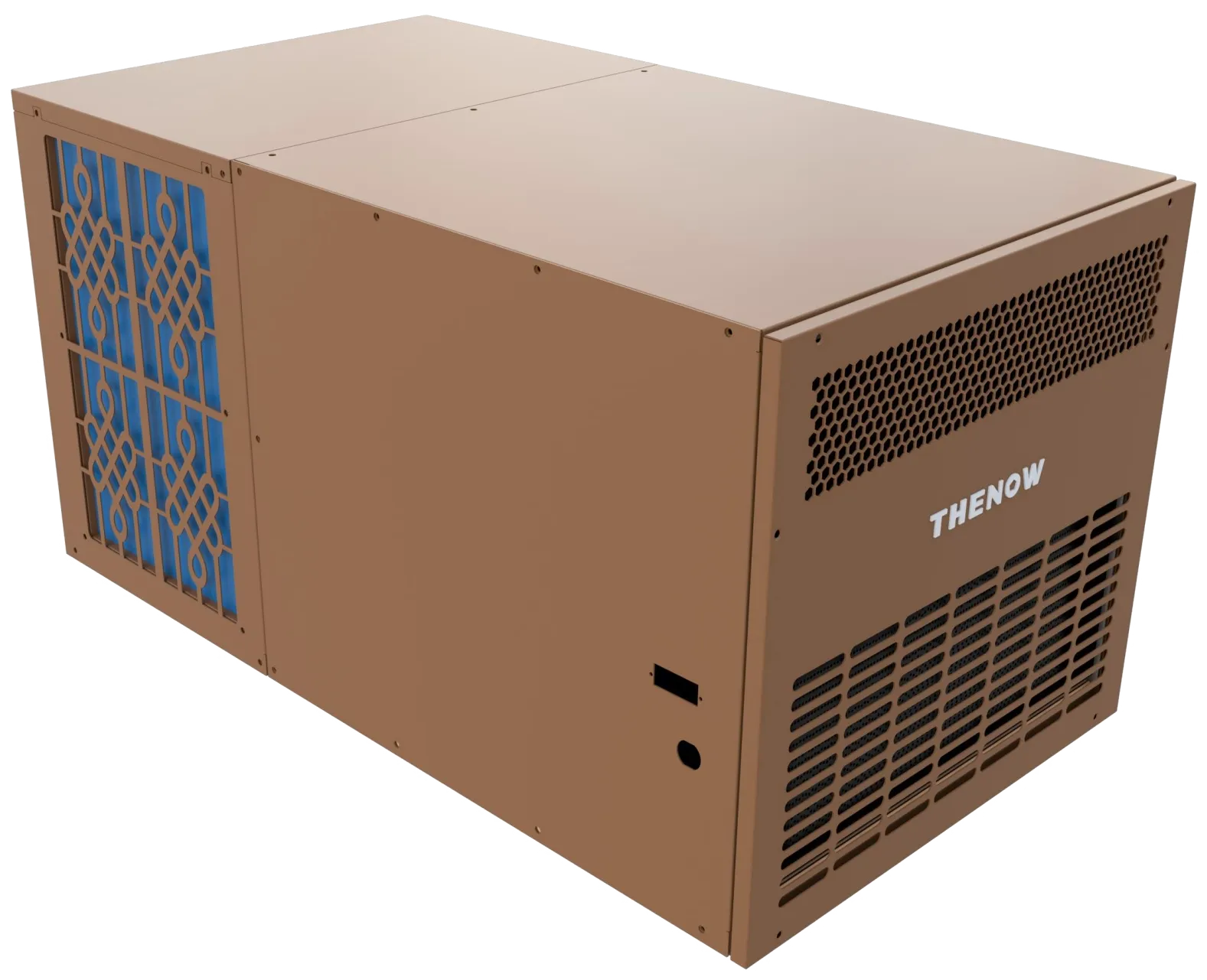

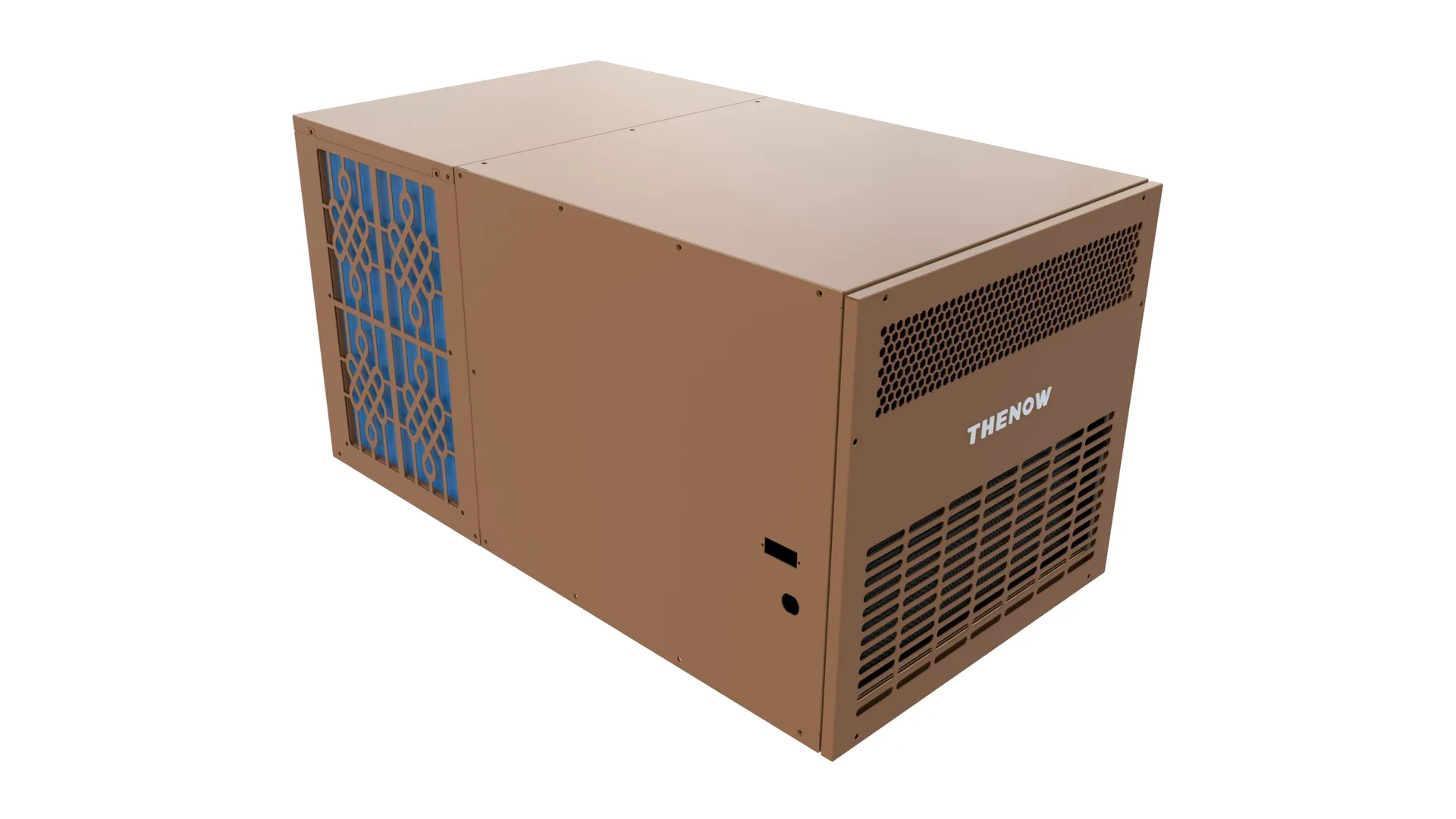

Wine Cellar Cooling Units Through-the-Wall / JT20

  • Self-contained system. No outdoor condenser and no refrigerant pipework required

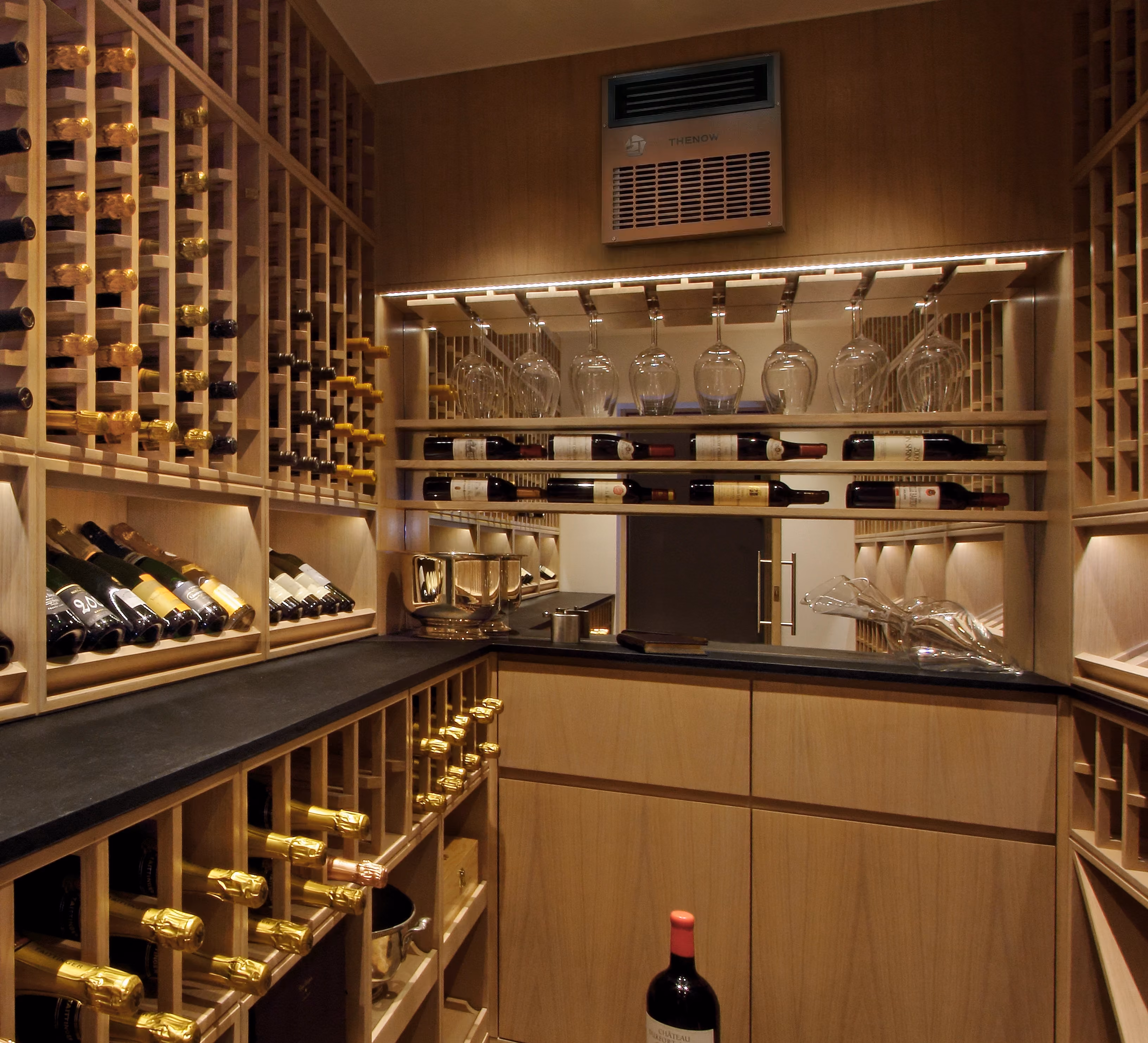

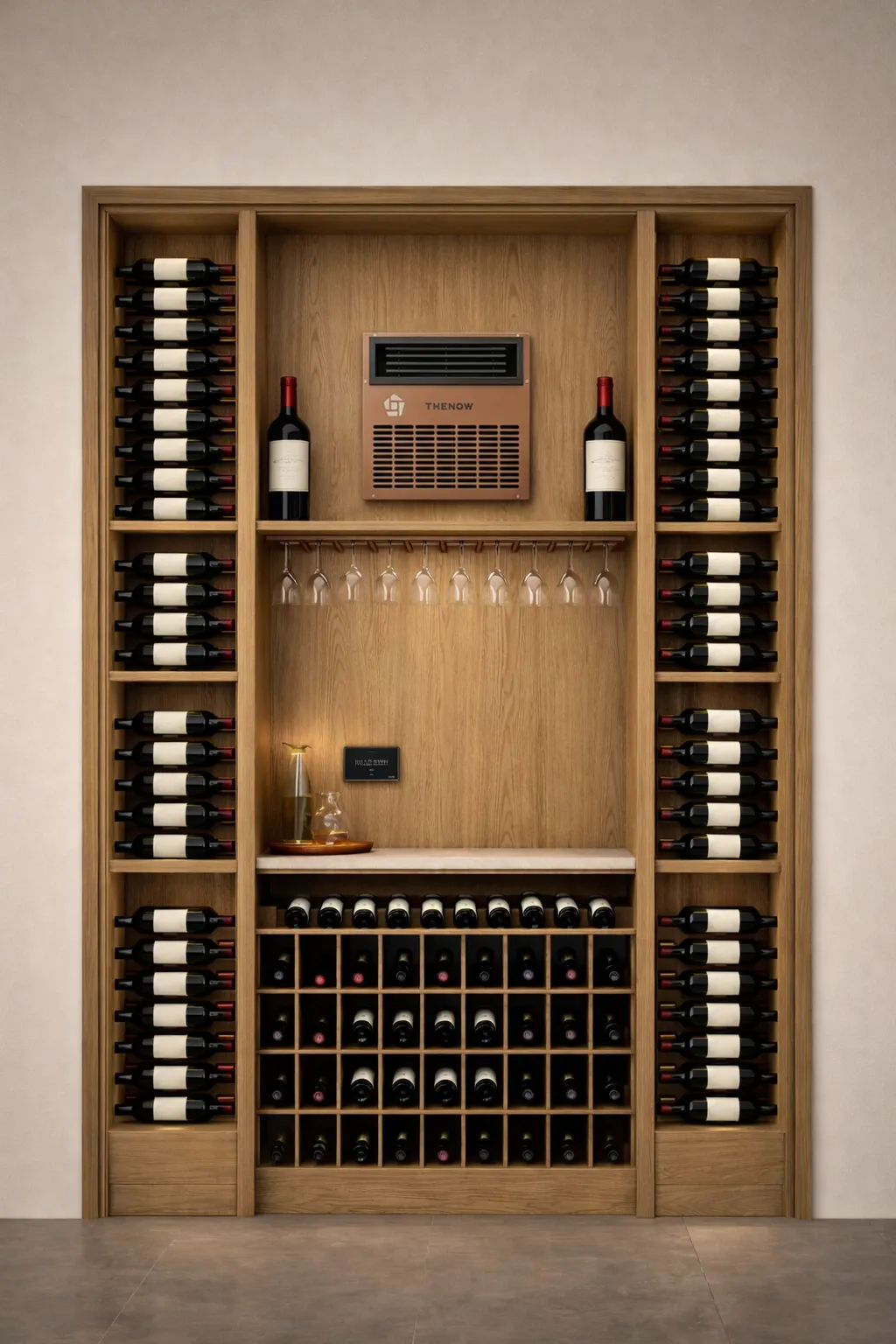

  • Through-the-wall installation for compact wine rooms and tight plant constraints
  • Faster, simpler installs with fewer trades and less disruption
  • Quiet, efficient operation for residential settings
  • Integrated wet-film humidification and PTC heater for stable temperature and humidity control
  • Intelligent controller with reliable sensors and ModBus connectivity for monitoring and integration
  • High-quality compressor designed for dependable performance and low energy use
  • High airflow grille design to support effective heat transfer and consistent circulation
View office address
View office address
MODELUNITJT20
Cellar Size (Semi Buried)m³4–7
Cellar Size (Insulated)m³4–12
PowerV/Hz220V/50Hz
CoolingKW0.72
HeatingKW1
Air Flowm³/h170
Static PressurePa30
NoisedB(A)42
Refrigerant/R290
Control/PC Full-touch smart control
Temperature°C"10–18°C
Humidity°C"50–70%
Total PowerKW1.5
Humidifier/Wet-film
Humidity CapacityKg/h1
Dimension (L×W×H)mm801×450×379
Drainagemmφ20
The specific parameters of Wine Cellar Cooling Units Through-the-Wall / JT20
